ESMs in practice

We have revamped how we build and queue ESMs to make it more user friendly and less error prone (moving away from having to write JSON objects!). To create an ESM queue, we now use the Factory software design pattern. Here are some examples.

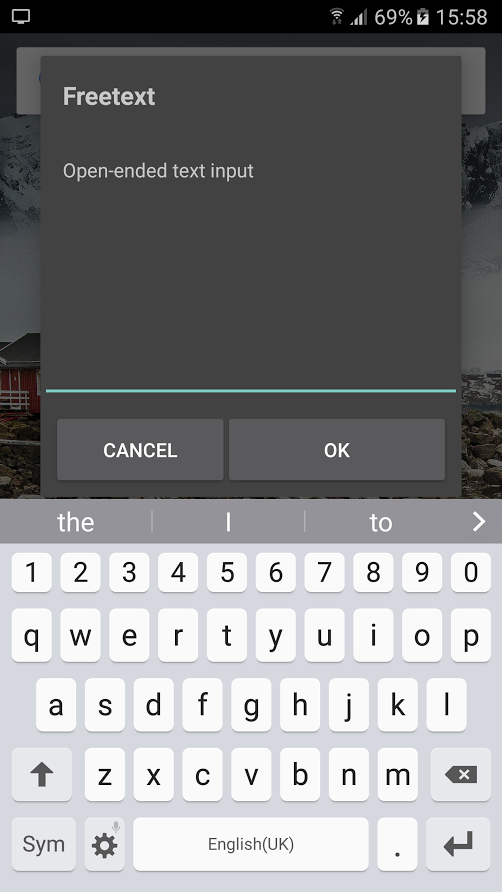

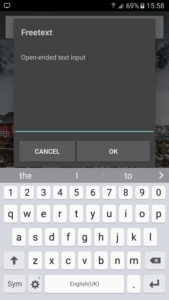

Free text

This ESM allows the user to provide free text input as context. This can be leveraged to capture sensor-challenging context, such personal opinions.

To define this free text ESM:

try {
 ESMFactory factory = new ESMFactory();

 //define ESM question
 ESM_Freetext esmFreetext = new ESM_Freetext();
 esmFreetext.setTitle("Freetext")
 .setTrigger("an esm queue from AWARE")
 .setSubmitButton("OK")
 .setInstructions("Open-ended text input");

 //add them to the factory
 factory.addESM(esmFreetext);

 //Queue them
 ESM.queueESM(context, factory.build());

 } catch (JSONException e) {
 e.printStackTrace();
 }

Internally, AWARE defines this question as JSON:

{"esm":{"esm_type":1,"esm_title":"Freetext","esm_trigger":"an esm queue from AWARE","esm_submit":"OK","esm_instructions":"Open-ended text input"}}

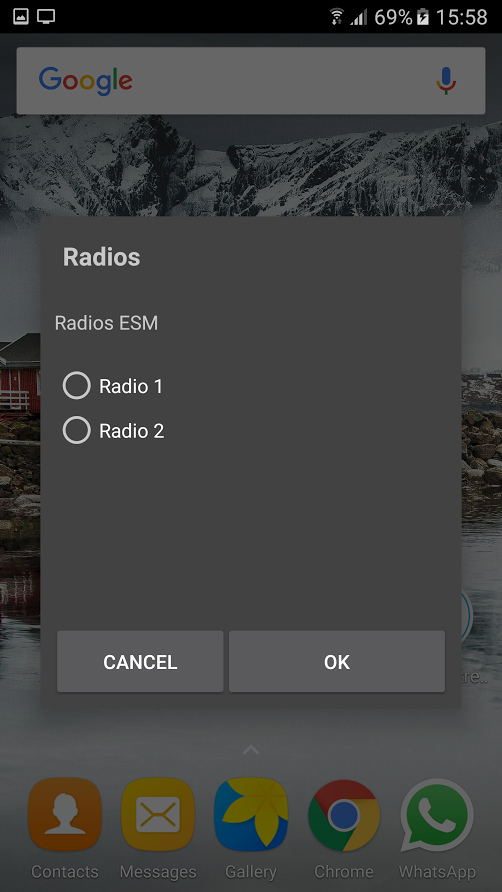

Radio

This ESM only allows the user to select a single option from a list of alternatives.

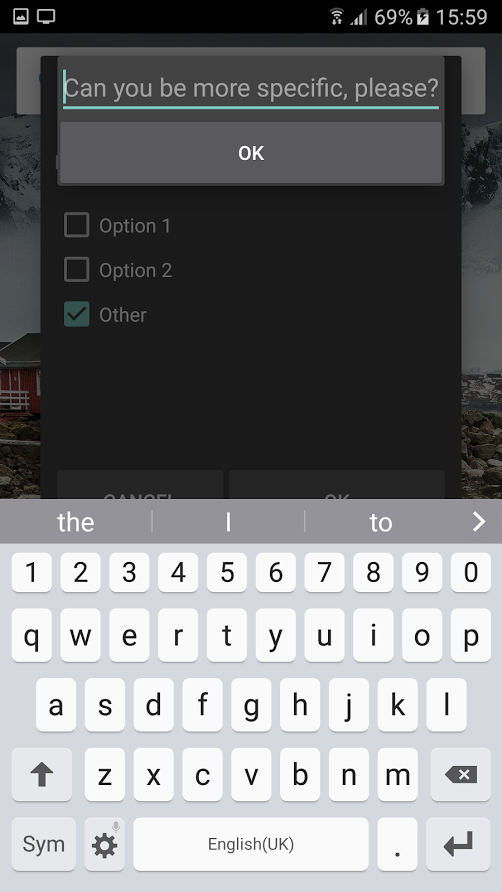

One of the options can be defined as “Other”, which will prompt the user to be more specific, replacing “Other” with the users’ defined option.

In case you wish to use a different word than “Other” you may override it on /res/values/strings.xml file on your project. To do so, add a new string resource with your new word and what appears on the title requesting the user to be more specific:

<?xml version="1.0" encoding="utf-8"?>
<resources>
<string name="aware_esm_other">Other</string>
<string name="aware_esm_other_follow">Can you be more specific, please?</string>
</resources>

To define this radio ESM:

try {
            ESMFactory factory = new ESMFactory();

            //define ESM question
            ESM_Radio esmRadio = new ESM_Radio();
            esmRadio.addRadio("Radio 1")
                    .addRadio("Radio 2")
                    .setTitle("Radios")
                    .setInstructions("Radios ESM")
                    .setSubmitButton("OK");

            //add them to the factory
            factory.addESM(esmRadio);

            //Queue them
            ESM.queueESM(context, factory.build());

        } catch (JSONException e) {
            e.printStackTrace();
        }

Internally, AWARE defines this question as JSON:

{"esm":{"esm_type":2,"esm_radios":["Radio 1","Radio 2"],"esm_title":"Radios","esm_instructions":"Radios ESM","esm_submit":"OK"}}

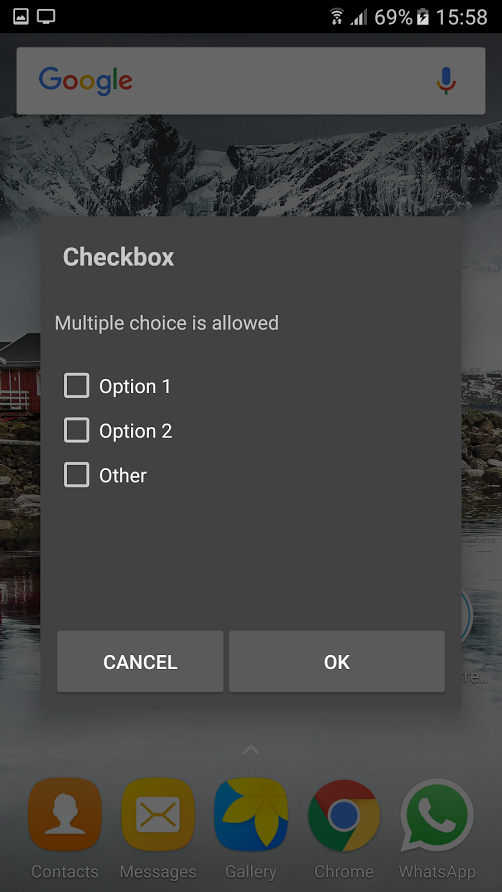

Checkbox

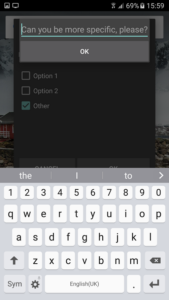

This ESM allows the user to select one or more options from a list of alternatives. Similar to the Radio ESM, one of the options can be defined as “Other”, which will prompt the user to be more specific, replacing “Other” with the users’ defined option.

In case you wish to use a different word than “Other” you may override it on /res/values/strings.xml file on your project. To do so, add a new string resource with your new word and what appears on the title requesting the user to be more specific:

<?xml version="1.0" encoding="utf-8"?>
<resources>
<string name="aware_esm_other">Other</string>
<string name="aware_esm_other_follow">Can you be more specific, please?</string>
</resources>

To define this checkbox ESM:

try {
            ESMFactory factory = new ESMFactory();

            //define ESM question
            ESM_Checkbox esmCheckbox = new ESM_Checkbox();
            esmCheckbox.addCheck("Option 1")
                    .addCheck("Option 2")
                    .addCheck("Other")
                    .setTitle("Checkbox")
                    .setSubmitButton("OK")
                    .setInstructions("Multiple choice is allowed");

            //add them to the factory
            factory.addESM(esmCheckbox);

            //Queue them
            ESM.queueESM(context, factory.build());

        } catch (JSONException e) {
            e.printStackTrace();
        }

Internally, AWARE defines this question as JSON:

{"esm":{"esm_type":3,"esm_checkboxes":["Option 1","Option 2","Other"],"esm_title":"Checkbox","esm_submit":"OK","esm_instructions":"Multiple choice is allowed"}}

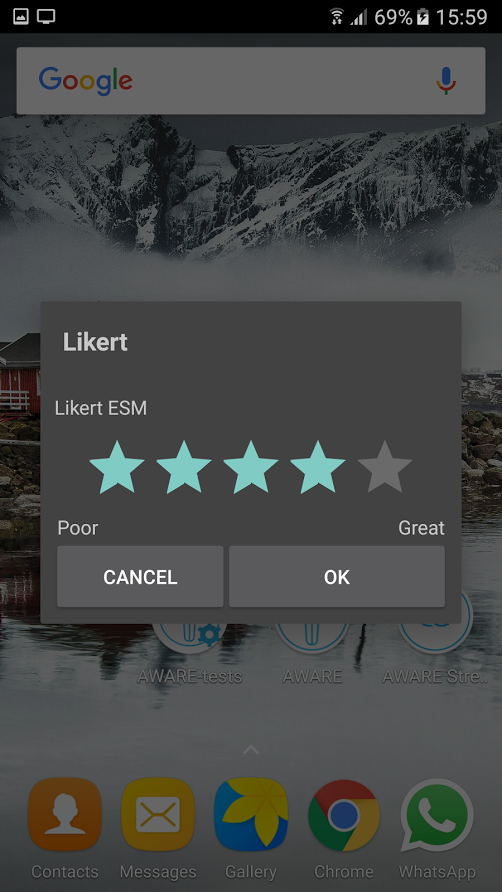

Likert Scale

This ESM allows the user to provide ratings, between 0 and 5/7, at 0.5/1 increments. The likert scale labels are also customisable. The default rating is no rating.

To define this likert scale ESM:

try {
            ESMFactory factory = new ESMFactory();

            //define ESM question
            ESM_Likert esmLikert = new ESM_Likert();
            esmLikert.setLikertMax(5)
                    .setLikertMaxLabel("Great")
                    .setLikertMinLabel("Poor")
                    .setLikertStep(1)
                    .setTitle("Likert")
                    .setInstructions("Likert ESM")
                    .setSubmitButton("OK");

            //add them to the factory
            factory.addESM(esmLikert);

            //Queue them
            ESM.queueESM(context, factory.build());

        } catch (JSONException e) {
            e.printStackTrace();
        }

Internally, AWARE defines this question as JSON:

{"esm":{"esm_type":4,"esm_likert_max":5,"esm_likert_max_label":"Great","esm_likert_min_label":"Poor","esm_likert_step":1,"esm_title":"Likert","esm_instructions":"Likert ESM","esm_submit":"OK"}}

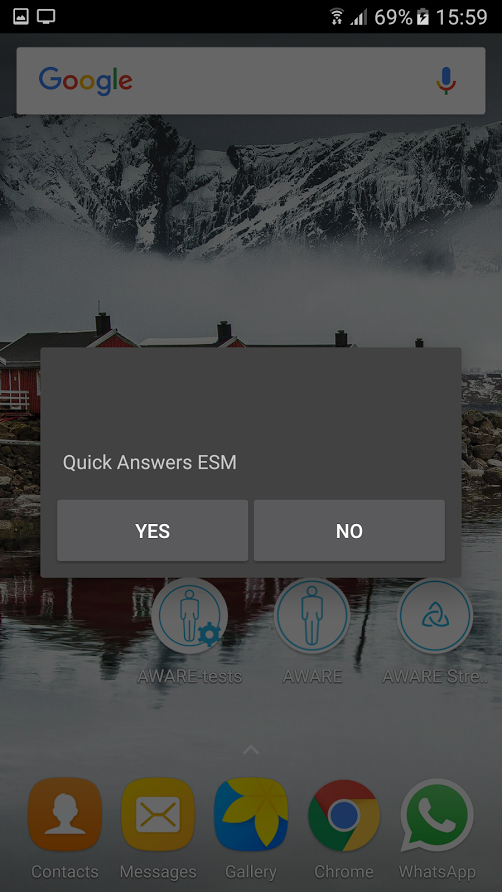

Quick Answer

This ESM allows the user to quickly answer the ESM. The button arrangement  is fluid, to support more or less inputs. Keep in mind that a dialog can only grow as much as there is screen estate and we don’t recommend more than 6 items here.

Unlike previous ESMs , there is no “Cancel” button for this type of ESM. However, the user can dismiss the questionnaire by pressing the Home or Back button on the device.

To define this quick answer ESM:

try {
            ESMFactory factory = new ESMFactory();

            //define ESM question
            ESM_QuickAnswer esmQuickAnswer = new ESM_QuickAnswer();
            esmQuickAnswer.addQuickAnswer("Yes")
                    .addQuickAnswer("No")
                    .setInstructions("Quick Answers ESM");

            //add them to the factory
            factory.addESM(esmQuickAnswer);

            //Queue them
            ESM.queueESM(context, factory.build());

        } catch (JSONException e) {
            e.printStackTrace();
        }

Internally, AWARE defines this question as JSON:

{"esm":{"esm_type":5,"esm_quick_answers":["Yes","No"],"esm_instructions":"Quick Answers ESM"}}

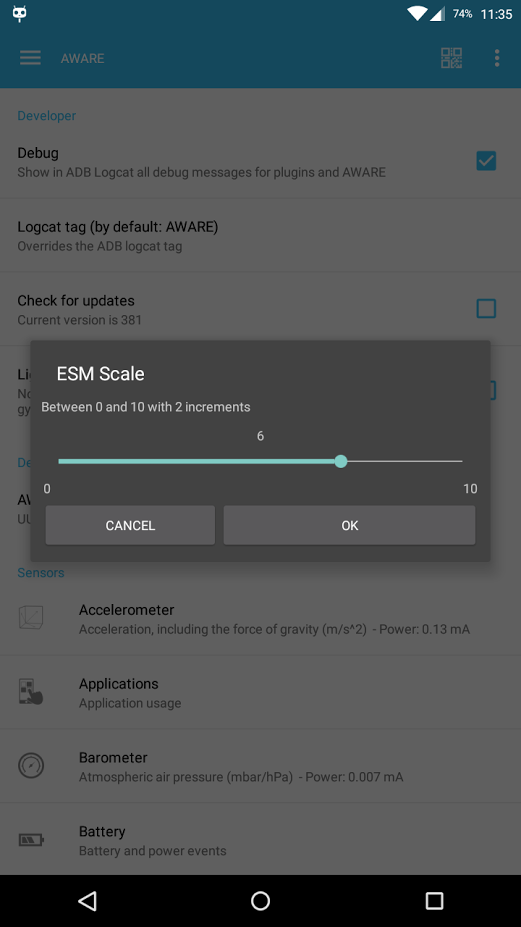

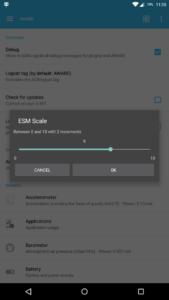

Scale

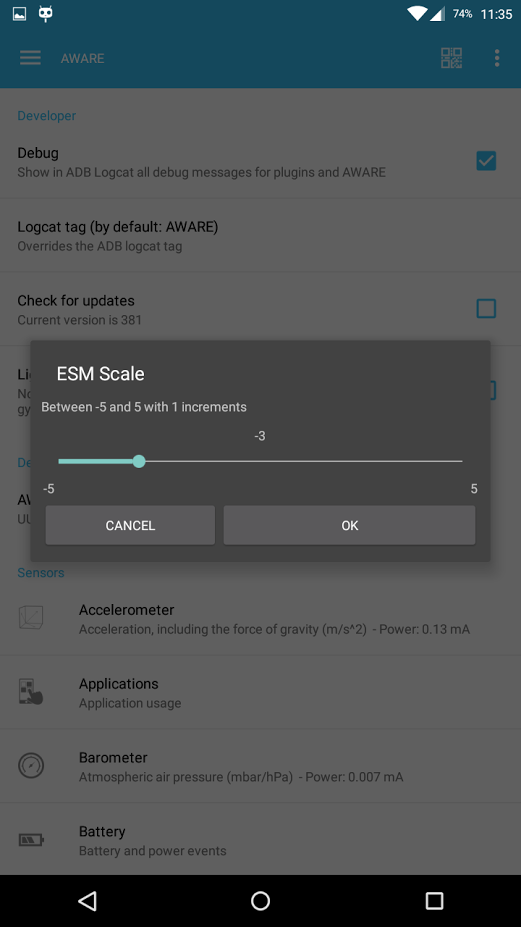

This ESM allows the user to select a value within a range of values. The range can be positive (e.g., X to Y) where X and Y are both positive numbers; or negatively balanced (e.g., -X to X), where X is the same value.

To define this scale ESM:

Numeric

This ESM allows the user to provide numeric input. Numbers inputted by the participant can be both full numbers and decimals.

To define this numeric ESM:

try {
            ESMFactory factory = new ESMFactory();
            //define ESM question
            ESM_Number esmNumeric = new ESM_Number();
            esmNumeric.setTitle("Numeric")
            .setInstructions("The user can enter a number")
            .setSubmitButton("OK");

            //add them to the factory
            factory.addESM(esmNumeric);

            //Queue them
            ESM.queueESM(context, factory.build()); } catch (JSONException e) { e.printStackTrace(); }

Internally, AWARE defines this question as JSON:

{"esm":{"esm_type":9,"esm_title":"Numeric","esm_instructions":"The user can enter a number","esm_submit":"OK"}}

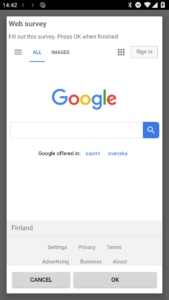

Web

This ESM allows you to ask the user to answer an online survey.

To define this ESM:

try {
            ESMFactory factory = new ESMFactory();

            ESM_Web web = new ESM_Web();
            web.setURL("https://www.google.com");
            web.setTitle("Web survey");
            web.setInstructions("Fill out this survey. Press OK when finished");
            web.setSubmitButton("OK");

            factory.addESM(web);

            ESM.queueESM(context, factory.build());

        } catch (JSONException e) {
            e.printStackTrace();
        }

Internally, AWARE defines this question as JSON:

{"esm":{"esm_type":10,"esm_title":"ESM Web","esm_instructions":"Please fill out this online survey. Press OK when done.","esm_submit":"OK","esm_url":"https://www.google.com"}}

Step-by-step ESM Questionnaire

To create a step-by-step questionnaire, we can group multiple ESM definitions together. For example, if we want to combine a free text, with a radio question, we can define them as a queue, where they are shown sequentially:

try {
        ESMFactory factory = new ESMFactory();

        ESM_Freetext esmFreetext = new ESM_Freetext();
        esmFreetext.setTitle("What is on your mind?")
        .setSubmitButton("Next")
        .setInstructions("Tell us how you feel");

        ESM_Radio esmRadio = new ESM_Radio();
        esmRadio.addRadio("Bored")
        .addRadio("Fantastic")
        .setTitle("Are you...")
        .setInstructions("Pick one!")
        .setSubmitButton("OK");

        //add them to the factory
        factory.addESM(esmFreetext);
        factory.addESM(esmRadio);

        //Queue them
        ESM.queueESM(context, factory.build()); } catch (JSONException e) { e.printStackTrace(); }

 Internally, AWARE defines this queue of questions as a JSON array:

[{"esm":{"esm_type":1,"esm_title":"What is on your mind?","esm_instructions":"Tell us how you feel","esm_submit":"Next"}},{"esm":{"esm_type":2,"esm_radios":["Bored","Fantastic"],"esm_title":"Are you...","esm_instructions":"Pick one!","esm_submit":"OK"}}]

ESM Questionnaire Flow

To make the next question displayed to the participant dependent on the participant’s answer to the current question, make use of the flow logic for ESMs. For example, to present a different question following a boolean yes/no choice, define your ESM queue like this:

try {
        ESMFactory factory = new ESMFactory();

        ESM_PAM q1 = new ESM_PAM();
        q1.setTitle("Your mood")
        .setInstructions("Choose the closest to how you feel right now.")
        .setSubmitButton("Thanks!");

        ESM_Radio q2 = new ESM_Radio();
        q2.addRadio("Eating")
        .addRadio("Working")
        .addRadio("Not alone")
        .setTitle("Why is that?")
        .setSubmitButton("Thanks!");

        ESM_QuickAnswer q0 = new ESM_QuickAnswer();
        q0.addQuickAnswer("Yes")
        .addQuickAnswer("No")
        .setTitle("Is this a good time to answer?")
        .addFlow("Yes", q1.build())
        .addFlow("No", q2.build());

        //add ONLY the last one (q0) to the factory, as the others (q1, q2) are part of the flow for Yes and No
        factory.addESM(q0);

        //Queue them
        ESM.queueESM(context, factory.build()); } catch (JSONException e) { e.printStackTrace(); }

Internally, AWARE defines this question flow as JSON:

{"esm":{"esm_type":5,"esm_quick_answers":["Yes","No"],"esm_title":"Is this a good time to answer?","esm_flows":[{"user_answer":"Yes","next_esm":{"esm":{"esm_type":8,"esm_title":"Your mood","esm_instructions":"Choose the closest to how you feel right now.","esm_submit":"Thanks!"}}},{"user_answer":"No","next_esm":{"esm":{"esm_type":2,"esm_radios":["Eating","Working","Not alone"],"esm_title":"Why is that?","esm_submit":"Thanks!"}}}]}}

 iOS

Please check a tutoral for developing ESMs on iOS or iOS ESM plugin.
